The berofix product series, available from ICTGlobe, is a powerful and flexible hardware solution to connect ISDN (BRI, PRI), analogue (FXO/FXS) and GSM lines to any SIP based VoIP system. berofix is not a classical media gateway nor a standard PCI/PCIexpress card where you have to install any drivers, therefore it’s called a “Gateway card”.

Due to the special design of the hardware berofix will be detected as a standard Realtek-Network card by the operating system. Usually the driver for this network card will be loaded automatically by the OS. The only thing you have to do is to set up the IP-address before you can access the web interface which is very easy to use.

The berofix product series has a modular concept and supports the following hardware DSP based Voice Processing features:
  • G.168/G.165 Echo cancellation with echo path change detection, up to 128ms
  • Codec translation: G.723.1 and Annex A, G.729a, G.726, G.711u/a
  • DTMF detection and generation
  • T.38 fax relay (V.27,V.29 and V.17)
  • SIP over TCP
  • TLS (SIP Signalling)
  • SRTPv (available Q3 2011)
  • DSS1, EuroISDN conform
  • Q.SIG Basic-Features
  • PCM Bus interconnection between berofix cards and even Boxes to enable hardware bridging for transparent voice, data and fax transmissions via optional PCM-Bus cable (available in V2)

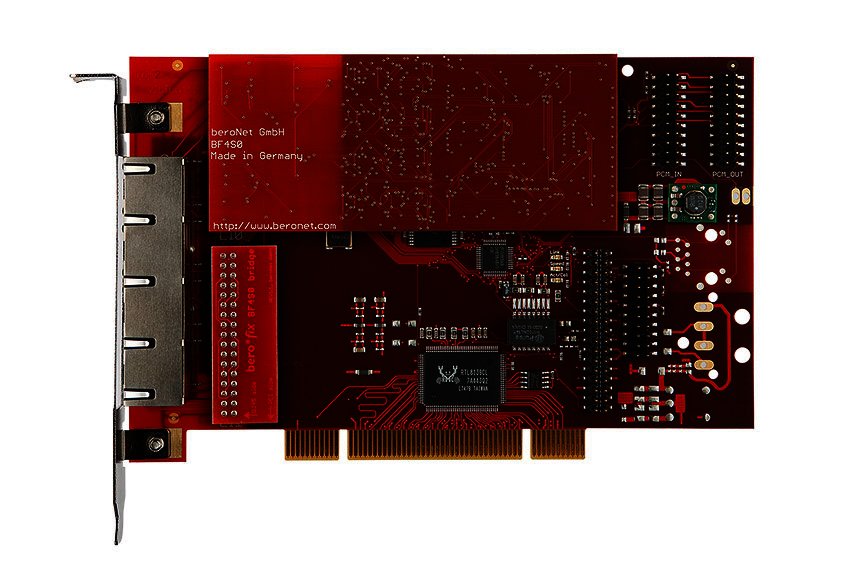

The beroFix Mainboard (available as PCI or PCIe)

Modular & Expandable

The Mainboard is modular where you can plug and mix different access modules in analogue, digital (BRI/PRI ISDN) and GSM all on the same card. A PCM Bus interconnection between berofix cards enables you to bridge hardware for building mixed and high-density transparent Voice, Video, Data and Fax transmissions.

5 Minute Installation: It’s Plug & Play!

Berofix is OS independent and can be used for Linux/Unix Windows and MAC OS. This new advancement in technology incorporates a proprietary Beronet OS on the Mainboards which is automatically detected by your system as just ‘Network card’. All necessary drivers are automatically loaded by the host machine’s OS.

Features:

• Codecs: G.723.1 and Annex A, G.729 a/b, G.726, G.711 u/A
• G.168/G.165 Echo Cancellation with Echo Path Change Detection, up to 128ms
• DTMF Digit Detection
• Voice Activity Detection / Comfort Noise Generation
• Caller ID Generation / Detection
• T.38 fax relay (v.27ter, V.29, and V.17)
• DSS1, EuroISDN conform (feature set: COLP, CFU/CFB, CFNRY, CCBS, ECT, UUS, MCID, CD, CW)
• Q.SIG feature set: CNIP,
• Runs on every operating system with every SIP based VoIP solution like AsteriskR, OpenSER, SwyxR or 3CXR
• Modular concept enabling the mix of available technologies (for example E1 and S0)

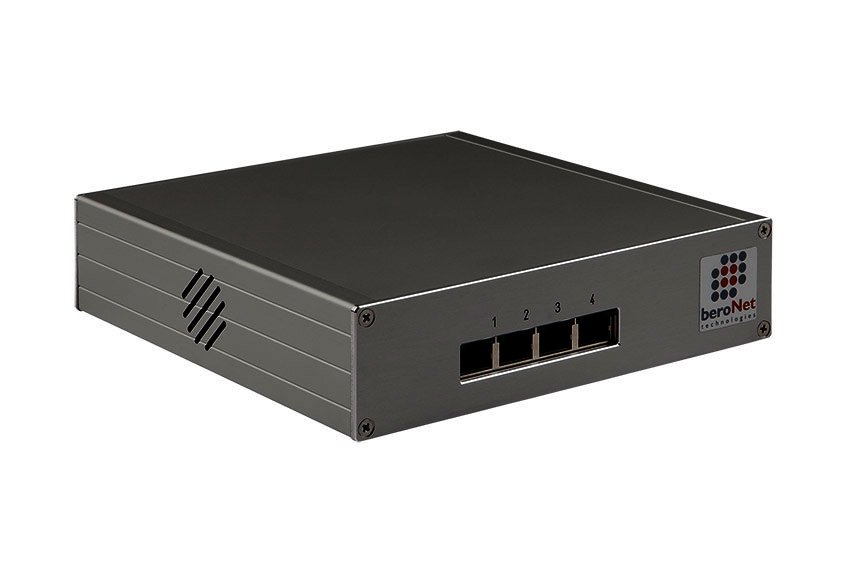

The beroFix stand-alone Box

Modular & Expandable

The Mainboard is modular where you can plug and mix different access modules in analogue, digital (BRI/PRI ISDN) and GSM all on the same card. A PCM Bus interconnection between berofix cards enables you to bridge hardware for building mixed and high-density transparent Voice, Video, Data and Fax transmissions.

5 Minutes installation: Ready out of the box!

Berofix box is a complete stand-alone solution. Simply connect the box to your network, plug in the power cable and you are ready to go. A user friendly user interface to configure the box is available via the browser.

Features:

• Codecs: G.723.1 and Annex A, G.729 a/b, G.726, G.711 u/A
• G.168/G.165 Echo Cancellation with Echo Path Change Detection, up to 128 ms
• DTMF Digit Detection
• Voice Activity Detection / Comfort Noise Generation
• Caller ID Generation / Detection
• T.38 fax relay (v.27ter, V.29, and V.17)
• DSS1, EuroISDN conform (feature set: COLP, CFU/CFB, CFNRY, CCBS, ECT, UUS, MCID, CD, CW)
• Q.SIG feature set: CNIP,
• Runs on every operating system with every SIP based VoIP solution like AsteriskR, OpenSER, SwyxR or 3CXR
• Modular concept enabling the mix of available technologies (for example E1 and S0)

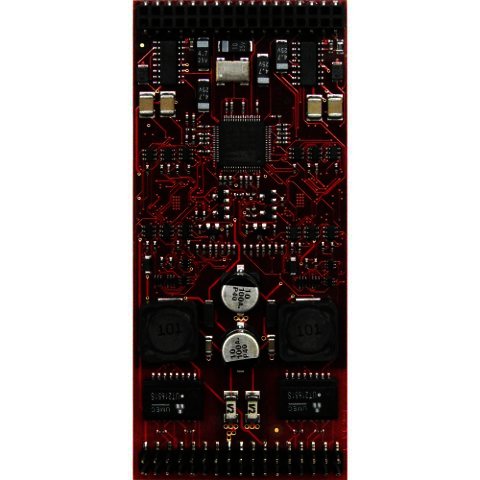

BF2S02FXS: 4 Port Hybrid Module

The BF4S0 is used for small enterprises that need up to 4 concurrent calls. This hybrid module combines BRI and Analog Ports on one Module to reduce overall costs. It can be used to connect a Softpbx to the PSTN Network as well as a traditional PSTN based PBX. Analog Phones, Faxes and Modems can be connected directly. It is fully compatible and combinable with all beroFix Modules and cards.

Technical Details:

• 2 separate BRI (S0) Ports
• 2 separate Analog FXS Ports
• Each BRI Port configurable as NT or TE
• NT and TE cable crossing; Software controlled
• Termination Resistors (100Ohm); Software controlled
• PCM Bus for hardware bridging of Data (on Module, between Modules on the same beroFix or between 2 connected beroFixes)
• Layer 2 is Q.921 compatible
• Layer 3 is Q.931 (EuroISDN) compatible
• Supplementary Services: Clip/No-Screening, CLIR, COLP, UUS, MCID, CD, CNIP
• FXS supports 0V to -94.5 V
• FXS supports 3-5 REN (depending on line length)
• FXS has Current feed 20-41mA
• FXS Ringing Frequency, Amplitude, Waveshape and Cadences programmable (by Country Setting)
• Dimension: 105 x 46 x 9 mm
• Weight: <40 g
• Operating Temperature: 0-70°C

BF4S0: 4 Port BRI Module

The BF4S0 is used for small to Medium Enterprises who need 8-16 concurrent calls. It can be used to connect a Softpbx to the PSTN Network as well as a traditional PSTN based PBX. It is fully compatible and combinable with all beroFix modules and cards.

Technical Details:

• 4 separate BRI (S0) Ports
• Each Port configurable as NT or TE
• NT and TE cable crossing; Software controlled
• Termination Resistors (100 Ohm); Software controlled
• PCM Bus for hardware bridging of Data (on Module, between Modules on the same beroFix or between 2 connected beroFixes)
• Layer 2 is Q.921 compatible
• Layer 3 is Q.931 (EuroISDN) compatible
• Supplementary Services: Clip/No-Screening, CLIR,COLP, UUS, MCID, CD, CNIP
• Dimension: 105 x 46 x 9 mm
• Weight: < 40 g
• Operating Temperature: 0-70°C

BF1E1: 1 Port PRI Module

The BF1E1 is used for medium Enterprises who need up to 30 concurrent calls. It can be used to connect a Softpbx to the PSTN Network as well as a traditional PSTN based PBX. It is fully compatible and combinable with all beroFix Modules and cards.

Technical Details:

• 1 PRI (S2M) Port
• Configurable as NT or TE
• Termination Resistors switchable via DIPs between 120Ohm and 75Ohm
• PCM Bus for hardware bridging of Data (on Module, between Modules •
on the same beroFix or between 2 connected beroFixes)
• Layer 2 is Q.921 compatible
• Layer 3 is Q.931 (EuroISDN) compatible
• Supplementary Services: Clip/No-Screening,CLIR, COLP, UUS, MCID, CD, CNIP
• Dimension: 105 x 46 x 9 mm
• Weight: <40 g
• Operating Temperature: 0-70°C

All these products are available from ICTGlobe, a company that specialises in providing Small and Medium Enterprises with reliable, easy to use Information and Communication technologies. ICTGlobe also offer server, domain, email and web hosting, as well as internet provisioning to a large client base. Call them on 012-940-0250/1.
